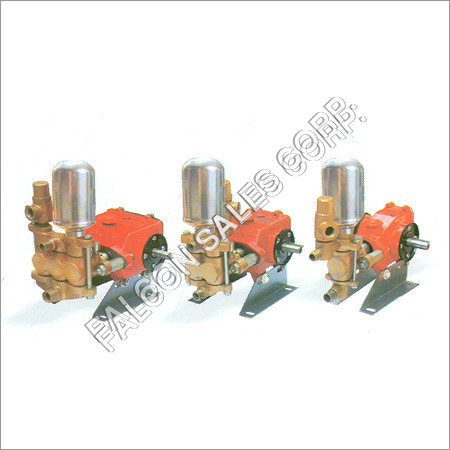

Water Piston Pumps
- Minimum Order Quantity
- 1 Piece
- Price
- 9850 INR
- Color
- Orange And Siver
- Material
- Cast Iron
- Structure
- Piston Pump
- Power
- Electric Watt (w)
- Fuel Type
- Water
- Pressure
- High Pressure kgf/cm2
- Usage
- Water
With enormous experience and expertise, we are able to supply Water Piston Pumps. These products are used in different dewatering units and plants for controlling ground water level. Owing to their continuous process, these products provide accurate and better workability. The level of the water can be adjusted as per the requirements of the clients. Water Piston Pumps are available with us in different specifications and models as per the demands of the clients.
Other details:
We offer high quality water piston pump.The construction of these pumps is called a double acting piston pump and these types of pumps have quit a lot of advantage in the dewatering process.Controlling ground water level is a continuous process during the time you need a change in the level.
Application
-
Spraying Agro Chemicals in the orchards & the fields. Automobile Service Station.
-
Boiler feed Pump. Hydro Testing for vessels valves etc.
-
Jet Spray cleaning system. Spray drying systems.
Features
-
Heavy duty and power efficient
-
Sturdy construction.
-
Develops maximum pressure upto 400 PSI at 960 RPM.
-
Horizontal stainless steel piston.
-
All working part are lubricated by oil bath.
-
Provides by-pass cum pressure regulating valve and Pressure vessel.
-
Capacity is 10 LPM to 36 LPM.
Technical Specification
| Description | Model | ||
| RP1 | RP2 | RP3 | |
| No. of Piston | 1 | 2 | 3 |
| Piston Stroke | 20mm | 20mm | 20mm |
| Piston Diameter | 30mm | 30mm | 30mm |
| Suction | 1/2" BSP | 1/2" BSP | 3/4" BSP |
| Delivery | 1/2" BSP | 1/2" BSP | 1/2" BSP |
| By-Pass | 1/2" BSP | 1/2" BSP | 1/2" BSP |
| Capacity | 11 LPM | 22 LPM | 36 LPM |
| Pressure | 400 PSI | 400 PSI | 400 PSI |
| Pump Speed | 960 RPM | 960 RPM | 960 RPM |
| Drive | Pully Drive | Pully Drive | Pully Drive |
| Speed Ratio | 01 : 01.5 | 01 : 01.5 | 01 : 01.5 |
| Horse Power | 1 HP | 2 HP | 3 HP |
| Overall dimension (LWH) | 10"x8"x11" | 12"x10"x14" | 12"x12x13" |
| Weight | 6KG | 10KG | 15KG |
